Disc Articulators

Dental Disc & Semi-Adjustable Articulators

Dental disc and semi-adjustable articulators are reusable laboratory instruments that hold maxillary and mandibular stone-cast study models in a fixed inter-arch relationship for diagnostic mounting, crown and bridge wax-up, removable denture fabrication, full-mouth occlusal analysis and orthodontic appliance design. Disc-type articulators use a perforated mounting disc on each arm to position the cast, while semi-adjustable articulators add condylar guidance, lateral movement and protrusive translation for multi-unit fixed prosthodontics. Dentalkart stocks the Labodent Articulator Discs (Pack of 2) alongside hinge, plane-line, brass adjustable, semi-adjustable 3-pin and universal articulators from Samit, API and Jinguang.

Types of Dental Articulators

Hinge & Plane-Line Articulators

Hinge and plane-line articulators such as the Samit Articulator Plane Line (Hinge Type) open and close around a single axis to mimic the basic open-close mandibular movement, sufficient for diagnostic study-model mounting, single-unit anterior crown waxing and orthodontic appliance design where lateral and protrusive analysis is unnecessary.

Brass Adjustable Articulators

Brass adjustable articulators such as the Samit Articulator Adjustable (Brass) use weighted brass arms with screw-adjustable inter-arch separation, giving the technician precise control over the vertical dimension during partial-denture framework design and posterior crown wax-up.

Semi-Adjustable 3-Pin Articulators

Semi-adjustable 3-pin articulators including the GI Articulator 3-Pin Semi-Adjustable reproduce protrusive and lateral mandibular movements alongside the open-close hinge, supporting multi-unit fixed prosthodontics, full-mouth rehabilitation and occlusal analysis where Bennett angle and condylar guidance must be replicated.

Universal & Ultra Adjustable Articulators

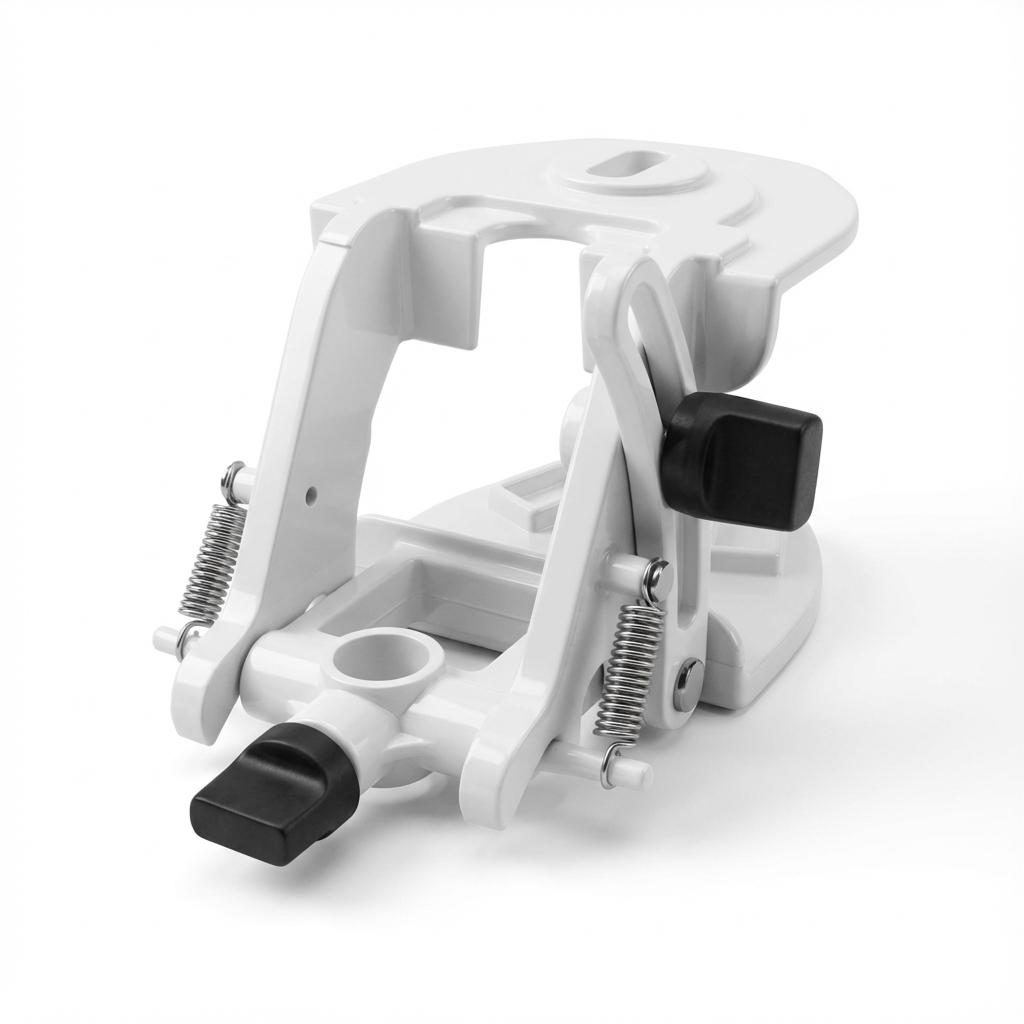

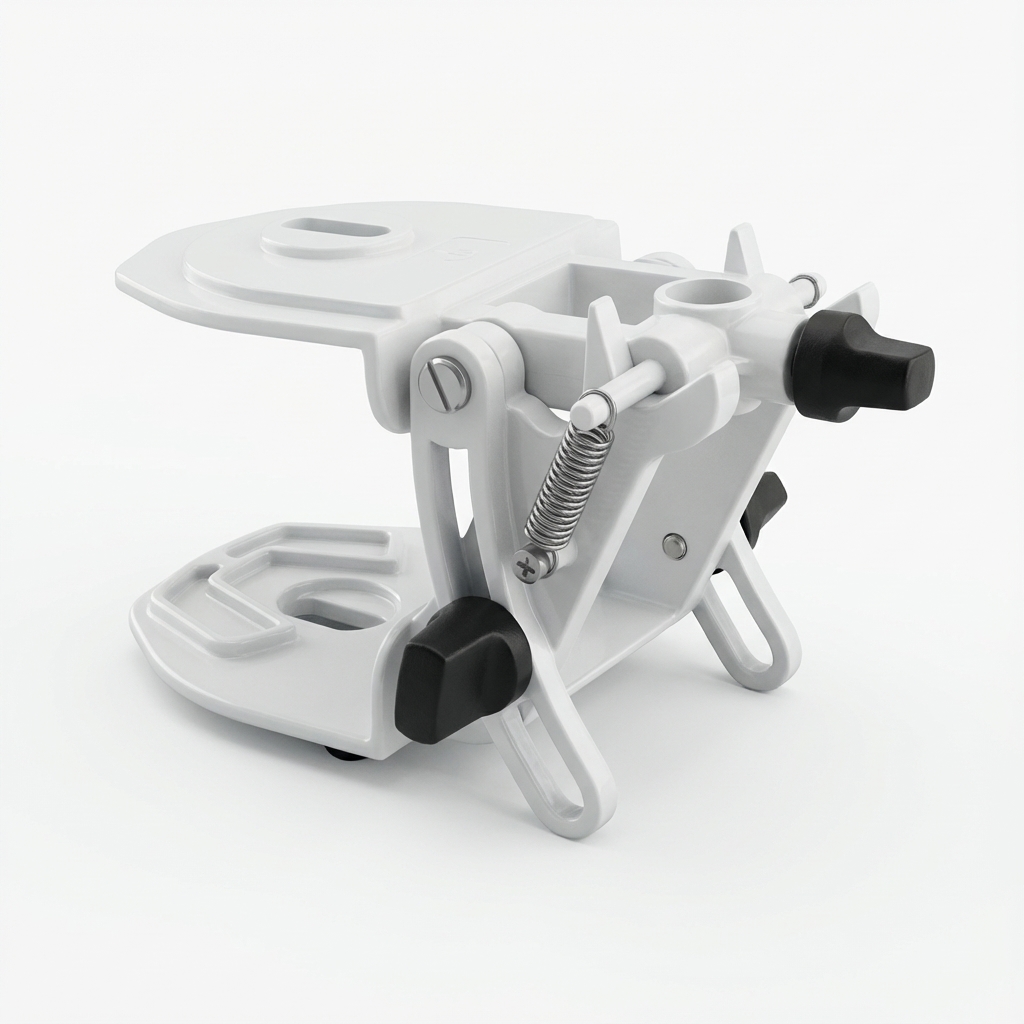

Universal adjustable articulators such as the API Articulator Ultra P2 and the Jinguang Universal Adjustable Articulator offer the full range of adjustable settings — inter-arch height, condylar inclination, lateral Bennett movement and protrusive translation — for advanced prosthodontic and full-mouth reconstruction cases.

When Are Disc & Semi-Adjustable Articulators Used?

Disc and semi-adjustable articulators are used during diagnostic study-model mounting, single-unit crown and bridge waxing, partial and complete removable denture fabrication, full-mouth occlusal analysis, orthodontic appliance design and any prosthodontic case where the maxillary-mandibular relationship and mandibular movement need to be replicated in the laboratory. They sit at the lab bench permanently and accept replacement articulator discs when the mounting surface wears or needs to be swapped between cases.

How to Choose the Right Articulator

Pick hinge and plane-line articulators for diagnostic study-model mounting and single-unit anterior cases where only open-close movement matters. Choose brass adjustable articulators for partial-denture framework design where vertical-dimension control is the priority. Select semi-adjustable 3-pin articulators for multi-unit fixed prosthodontics, full-mouth rehabilitation and occlusal-analysis work that needs Bennett-angle and condylar-guidance replication. Pick universal Ultra-grade articulators for full-mouth reconstruction and advanced prosthodontic cases where every adjustable setting needs precise control.

Brands of Dental Articulators at Dentalkart

The catalogue features Labodent Articulator Discs (Pack of 2) for disc replacement; the Samit range covering the Plane Line Hinge-Type Articulator and the Adjustable Brass Articulator; the API range including the API Articulator Hinge and API Articulator Ultra P2; the GI Articulator 3-Pin Semi-Adjustable for occlusal-analysis cases; and the Jinguang Universal Adjustable Articulator for full-mouth reconstruction work — covering hinge, plane-line, brass, semi-adjustable and universal Ultra-grade formats.

Why Buy Dental Articulators from Dentalkart

Dentalkart sources reusable dental articulators directly from authorised manufacturers including Samit, API, Labodent and Jinguang, with batch-coded packaging, cash-on-delivery, GST invoices and 110000+ pincode coverage across India. Practices and laboratories can pair reusable articulators with disposable dental articulators from the same catalogue for the appropriate single-case versus multi-case mounting choice in one order.

What is a dental disc articulator?

A dental disc articulator is a reusable laboratory instrument that uses a perforated mounting disc on each arm to hold maxillary and mandibular stone-cast study models in a fixed inter-arch relationship for diagnostic mounting, crown and bridge wax-up, removable denture fabrication and full-mouth occlusal analysis. The replaceable discs let the technician change the mounting surface between cases without replacing the whole articulator.

What is the difference between a disc articulator and a semi-adjustable articulator?

The difference between a disc articulator and a semi-adjustable articulator is movement complexity and case scope: disc articulators are typically simpler hinge-axis devices used for diagnostic mounting and single-unit work, while semi-adjustable articulators add condylar guidance, lateral Bennett movement and protrusive translation for multi-unit fixed prosthodontics, full-mouth rehabilitation and occlusal-analysis cases.

When should I use a 3-pin semi-adjustable articulator?

You should use a 3-pin semi-adjustable articulator for multi-unit fixed prosthodontics, full-mouth rehabilitation, occlusal-analysis cases and complex restorative work where the patient's protrusive and lateral mandibular movements must be replicated in the laboratory. Single-axis hinge or disc articulators are inadequate for these cases because they cannot reproduce Bennett-angle or condylar-guidance movements.

Can articulator discs be replaced?

Yes — articulator discs are designed to be replaced when the mounting surface wears, becomes contaminated with set stone, or when a clean fresh disc is preferred for a high-precision case. Replacement discs such as the Labodent Articulator Discs (Pack of 2) snap into the existing articulator arms, extending the service life of the instrument without buying a complete replacement.

How is the patient's bite transferred to the articulator?

The patient's bite is transferred to the articulator using a bite registration captured chair-side in poly-vinyl siloxane (PVS) paste, wax or bite-registration silicone. The set bite record is positioned between the maxillary and mandibular stone casts and the casts are mounted onto the articulator arms, replicating centric occlusion and any captured lateral or protrusive position for laboratory work.
