Implant Motors / Physiodispensers

Implant Motors / Physiodispensers — Surgical Motors with 20:1 Handpiece for Dental Implant Drilling, Sinus Lift & Bone Surgery

An implant motor (physiodispenser) is a precision surgical motor system that drives a 20:1 reduction contra-angle handpiece at controlled low speed (typically 15–2,000 rpm) and high torque (15–80 N·cm), with simultaneous chilled-saline irrigation pumped through the handpiece head to prevent bone overheating during osteotomy drilling. Used for every step of implant surgery — pilot drilling, sequential osteotomy, bone tap and final implant insertion — plus piezoelectric units for bone-window surgery, lateral sinus lift and bone harvesting. Dentalkart stocks chair-side implant motors and piezoelectric surgical units from Waldent, Bien-Air, W&H, NSK, Woodpecker and Julldent.

Types of Implant Motor at Dentalkart

Standalone implant motor with 20:1 handpiece

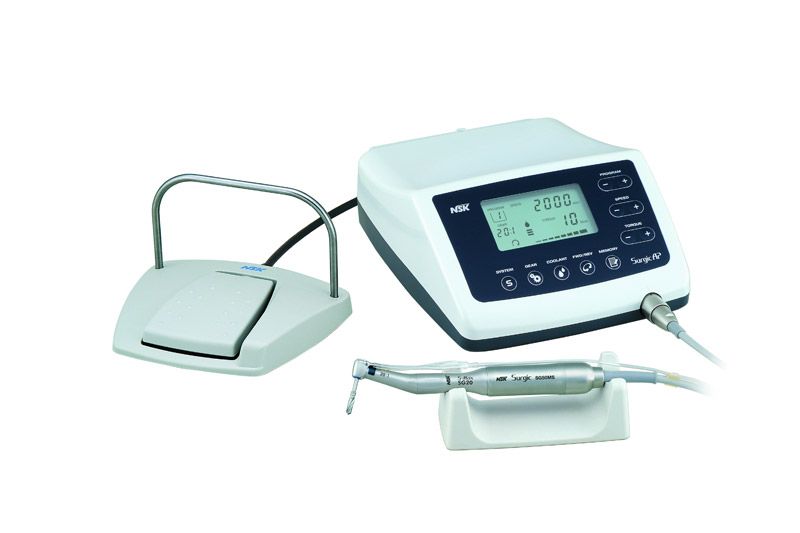

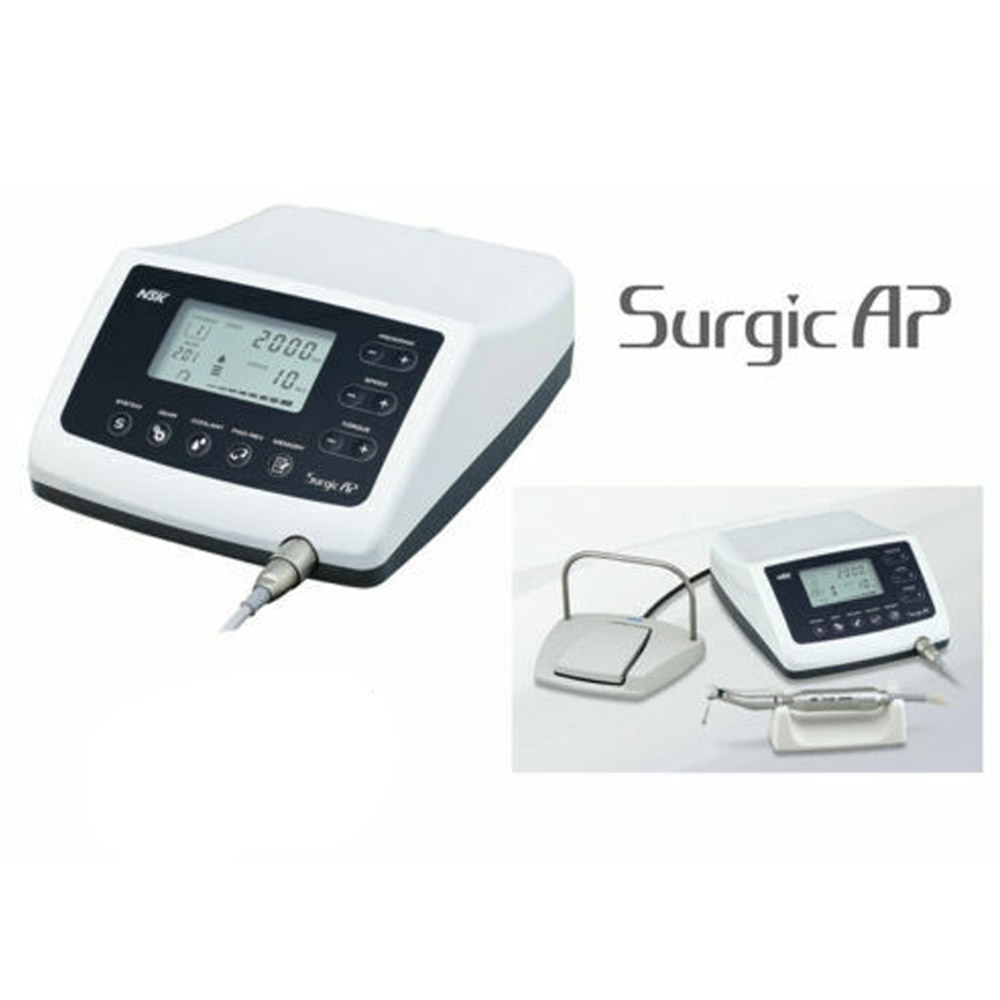

Tabletop implant motor systems with foot-pedal control, programmable speed/torque settings, peristaltic saline-irrigation pump and a paired 20:1 reduction surgical handpiece — the workhorse for routine implant placement. For example, NSK Surgic AP Implant Motor with S-Max SG20 Handpiece, NSK Surgic AP 2, W&H Implantmed Physiodispenser, W&H Implantmed Surgical Unit Complete SI-1023, Bien-Air Chiropro L, Waldent Physiodrive WIMU-101, Waldent AI Implant Touch (with fiberoptic implant handpiece), Woodpecker Implanter Optic and Julldent Physiodispenser.

Piezoelectric surgical units (for bone surgery alongside implant placement)

Piezoelectric surgical units that use ultrasonic micro-vibration of a precision tip to cut bone selectively without damaging soft tissue — preferred for lateral-window sinus lift, ridge splitting, autogenous bone harvesting and atraumatic root extraction in the implant workflow. For example, NSK VarioSurg 3 Fiber Optic Piezoelectric Surgery Unit and Woodpecker Surgic Smart Piezosurgery Unit.

When an Implant Motor Is Used

• Pilot drilling of the implant osteotomy under saline irrigation
• Sequential drilling to final implant diameter (twist drill, profile drill, countersink)
• Bone tapping in dense D1/D2 bone before implant insertion
• Final implant fixture insertion at controlled high torque (35–50 N·cm)
• Sinus floor elevation — crestal approach via osteotome or piezoelectric lateral-window
• Ridge splitting and autogenous bone harvesting (piezoelectric unit)
• Atraumatic root extraction preserving the buccal cortical plate
• Implant abutment screw torque-controlled tightening

How to Choose an Implant Motor

1. For routine single-implant chair-side placement pick a workhorse implant motor with programmable torque presets (NSK Surgic AP / AP 2, Bien-Air Chiropro L, W&H Implantmed).
2. For a value chair-side option with reliable performance pick the Waldent Physiodrive Implant Motor WIMU-101 or Woodpecker Implanter Optic.
3. For practices doing lateral-window sinus lifts and bone surgery alongside implant placement, add a piezoelectric unit (NSK VarioSurg 3, Woodpecker Surgic Smart) — selective bone cutting without soft-tissue damage.
4. Verify the 20:1 reduction handpiece is fibre-optic if you do posterior implants in patients with limited mouth opening — illumination is critical.
5. Match the saline-pump tubing set to your implant motor brand — incompatible tubing reduces flow rate and risks bone overheating during osteotomy.
6. Calibrate the motor's torque accuracy annually per the manufacturer IFU — insertion torque accuracy is critical for primary stability assessment.

Implant Motor Brands at Dentalkart

Dentalkart's implant motor range covers NSK (Surgic AP, Surgic AP 2 with S-Max SG20 handpiece, VarioSurg 3 Fiber Optic Piezoelectric), Bien-Air (Chiropro L), W&H (Implantmed Physiodispenser, Implantmed Surgical Unit Complete SI-1023), Waldent (Physiodrive WIMU-101, AI Implant Touch), Woodpecker (Implanter Optic, Surgic Smart Piezosurgery Unit) and Julldent (Physiodispenser) — covering premium European, Japanese, Chinese and Indian implant motor systems plus piezoelectric units for bone surgery.

Why Buy an Implant Motor from Dentalkart

Every implant motor and piezoelectric surgical unit is sourced direct from the manufacturer or authorised Indian distributor, ships with original manufacturer warranty, fibre-optic 20:1 handpiece, complete accessory kit and CDSCO compliance documentation, and reaches 110000+ pincodes across India with COD on most equipment SKUs. Pair the motor with the full Apex Konnect dental implants range and matched implant kits from one trusted catalogue serving 50,000+ dentists.

What is an implant motor or physiodispenser used for?

An implant motor (also called a physiodispenser) is used for every step of dental implant surgery — pilot drilling, sequential osteotomy, bone tap, final implant insertion and abutment torque tightening. It drives a 20:1 reduction surgical handpiece at controlled low speed and high torque with simultaneous chilled-saline irrigation to prevent bone overheating during osteotomy.

What is the difference between an implant motor and a piezoelectric surgical unit?

The difference is the cutting mechanism. An implant motor drives a rotating 20:1 handpiece with twist or profile drills for osteotomy and implant insertion. A piezoelectric surgical unit (NSK VarioSurg 3, Woodpecker Surgic Smart) uses ultrasonic micro-vibration of a precision tip to cut bone selectively without damaging soft tissue — used for lateral-window sinus lift, ridge splitting and bone harvesting.

What torque settings should I use for dental implant insertion?

For dental implant insertion use the implant manufacturer's recommended insertion torque — typically 35–50 N·cm in D2 bone, 25–35 N·cm in D3 bone, and 15–25 N·cm in D4 soft bone. Achieving 35 N·cm or higher generally indicates good primary stability for immediate loading. Never exceed the implant manufacturer's stated maximum insertion torque — over-torque causes bone microfracture.

Why is saline irrigation important during implant osteotomy?

Saline irrigation is important during implant osteotomy because bone overheating above 47 °C for more than 1 minute causes osteonecrosis and implant osseointegration failure. The implant motor's peristaltic pump delivers chilled saline through the 20:1 handpiece head onto the drill — cooling the bur and flushing bone debris from the osteotomy.

Are the implant motors on Dentalkart genuine and CDSCO-compliant?

Yes, every implant motor on Dentalkart is genuine and CDSCO-compliant. All NSK Surgic AP / AP 2, Bien-Air Chiropro L, W&H Implantmed, Waldent Physiodrive / AI Implant Touch, Woodpecker Implanter Optic / Surgic Smart and Julldent Physiodispenser units ship with original manufacturer warranty, 20:1 fibre-optic handpiece, complete accessory kit and CDSCO compliance documentation.
