Implant Motors / Physiodispensers

Implant Motors / Physiodispensers

Implant motors, also known as physiodispensers, are powered surgical consoles that prepare bone to receive a dental implant. A reduction handpiece converts motor revolutions into cutting force, foot-pedal control leaves both hands free, and an electric pump feeds coolant to the working tip. Beyond preparing the site, these units read out the resistance met as a fixture is driven home, giving the surgeon a number that reflects how firmly it is anchored.

Implant motor types

Programmable brushless consoles

Electronic control keeps the bur turning evenly as it passes from soft marrow into hard cortex, and each stage of a drilling protocol can be stored and recalled. The Bien-Air Chiropro L works this way.

Compact chairside consoles

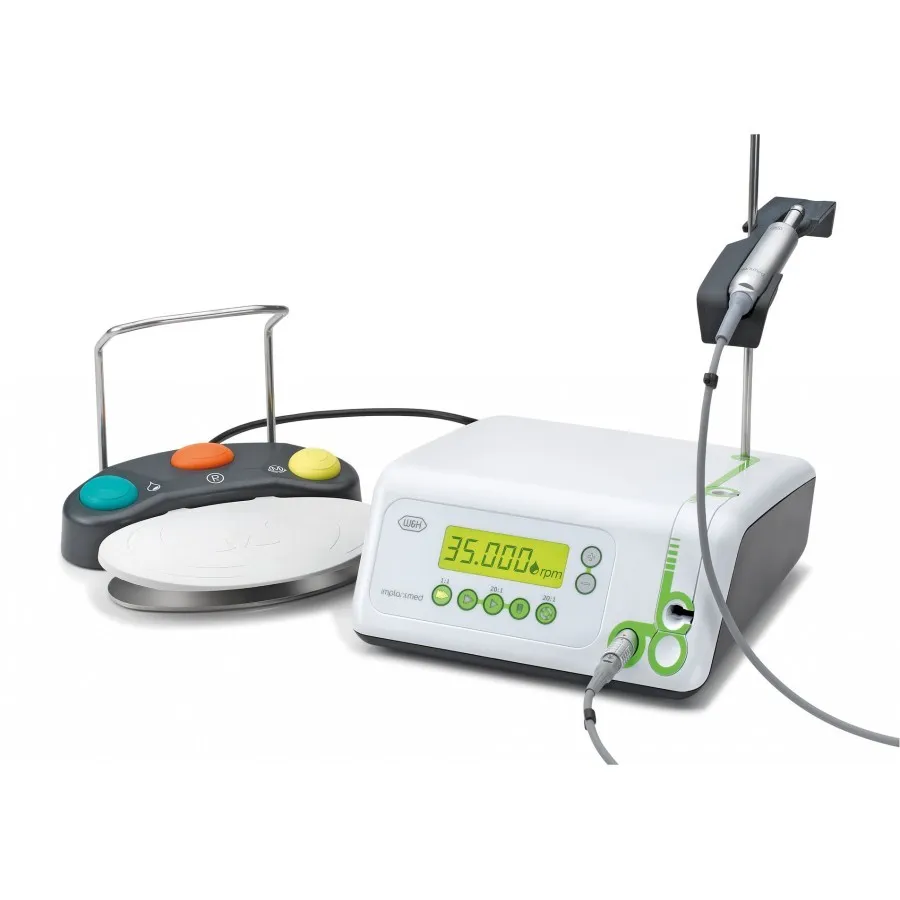

Fewer presets and a shallower menu, which suits a practice fitting a handful of fixtures a month rather than running an all-day surgical list. The W&H Implantmed Classic SI-923 is built around that simplicity.

Touch-screen consoles

A flat display replaces the dial, and many will spin the handpiece on start-up to check its gears are healthy before a case begins. The Waldent PhysioDrive WIMU101 uses a touch interface.

Illuminated handpiece systems

A lamp built into the head throws light down the shaft to the tip, which matters once you are working far enough back that your own hand shades the field.

Piezoelectric bone surgery units

No rotation at all. A tip oscillating at ultrasonic frequency parts hard tissue but skips over membrane and mucosa, so it is reached for when something fragile lies immediately beyond the bone being removed.

Where the unit is used in a case

A physiodispenser earns its place at four moments in a case: shaping the site, checking how firmly the fixture anchors, lifting a sinus floor where one is in the way, and returning months later to tighten the restorative screw.

• Marking and deepening the first channel through the crest
• Enlarging that channel in graded steps toward final width
• Cutting a thread into hard bone that would otherwise resist
• Reading resistance as the fixture is driven to depth
• Parting a sinus window with an oscillating tip rather than a bur
• Bringing an abutment screw to its specified figure later

What separates one implant motor from another

1. Trustworthy torque readout — the figure shown as the fixture seats becomes evidence for or against loading it straight away, so it must be believable and checked against the maker's schedule once a year.
2. Gearing on the supplied handpiece — published drilling sequences assume a particular reduction; a mismatch means every recommended figure has to be recalculated in your head mid-case.
3. Pump output and matching lines — the volume actually arriving at the tip decides whether bone stays cool, and third-party tubing seldom moves what the pump expects.
4. Light in the head — pays for itself at second molars and in patients who cannot open wide, precisely where a shadow falls worst.
5. Recallable settings — stepping between stored stages beats reaching across a sterile field to turn a dial mid-procedure.
6. Parts and repair route — the handpiece outlasts the console only if it is oiled, and how quickly a worn one can be swapped or rebuilt shapes the true cost of ownership.

Brands on the shelf

Implant motors are stocked from NSK, Bien-Air, W&H, Waldent, Woodpecker and Julldent, so the shelf runs from long-established surgical engineering houses through to newer value manufacturers. Rotary consoles for site preparation and fixture placement sit alongside ultrasonic units for bone grafting work, with lit and unlit handpiece options across the range.

Buying with service in mind

A console bought once has to keep working for a decade, and a surgeon whose motor is in for repair simply cannot operate. Every unit ships genuine under the maker's warranty, with product specialists on hand for handpiece rebuilds and replacement parts, and EMI available across capital equipment. Delivery reaches clinics nationwide.

Fixtures and components for these cases sit in implants, and the wider surgical tray in oral surgery.

What is an implant motor or physiodispenser used for?

An implant motor, or physiodispenser, drives a 20:1 reduction handpiece at low speed and high torque with continuous saline irrigation. It is used for every drilling stage of implant surgery — pilot drilling, sequential osteotomy to the final diameter, bone tapping in dense bone, seating the fixture at a controlled insertion torque, and torque-limited abutment tightening.

What is the difference between an implant motor and a piezoelectric surgery unit?

The cutting mechanism. An implant motor spins a drill in a 20:1 handpiece to cut the osteotomy and place the fixture. A piezoelectric unit vibrates a tip ultrasonically, cutting mineralised bone while largely sparing soft tissue — which suits lateral-window sinus lift, ridge splitting and block harvesting where a membrane or plate must be preserved.

What insertion torque should be used for a dental implant?

Follow the implant manufacturer's specification. As a general guide, roughly 35–50 N·cm in dense D2 bone, 25–35 N·cm in D3, and 15–25 N·cm in soft D4 bone. Around 35 N·cm and above usually indicates primary stability sufficient for immediate loading. Never exceed the stated maximum, as over-torque causes bone microfracture.

Why does an implant motor need saline irrigation?

Because heat kills bone. Sustained temperatures above about 47 °C cause osteonecrosis at the osteotomy wall and compromise osseointegration. The peristaltic pump delivers chilled saline through the handpiece head onto the drill, cooling the bur and flushing bone chips out of the flutes so the drill keeps cutting rather than burnishing.

What does the 20:1 reduction on an implant handpiece mean?

It means the bur turns twenty times slower than the motor, and the gearing converts that lost speed into torque. A motor running at 20,000 rpm delivers roughly 1,000 rpm at the bur, with the force needed to cut cortical bone steadily. Implant drilling protocols are written around this reduction ratio.
